What is an Industrial Strainer?
An Industrial Strainer is a device used to mechanically remove solids from flowing fluids (liquid or gas) through a perforated or wire mesh straining element. Strainers are essential for protecting pumps, valves, and other equipment from damage caused by debris and foreign particles. They are typically installed upstream of critical equipment and are designed to be easily cleaned without significant downtime. Common types include Y-Type strainers for compact spaces and T-Type or Pot-Type for higher debris capacity.
Working Principle

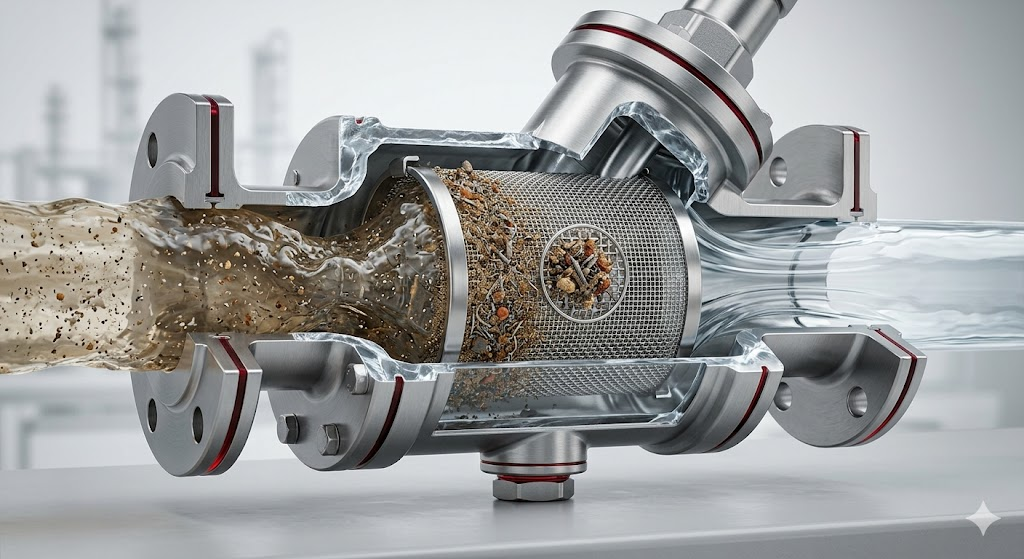

The industrial strainer works by forcing the fluid through a screen or mesh element. As the fluid passes through, any particles larger than the screen openings are trapped inside the strainer body. The filtered fluid then exits the outlet port. Y-type strainers utilize a branch leg that collects the debris, which can be drained through a blow-off valve or by removing the screen. Pot-type strainers have a larger basket that can be removed for cleaning. Our strainers are designed for minimal pressure loss and maximum filtration efficiency.
Technical Specifications
| Size Range | 1/2" to 24" (DN15 to DN600) |
|---|---|
| Pressure Rating | Class 150, Class 300, PN16, PN40 |
| Material | Cast Iron, WCB, Stainless Steel (CF8/CF8M) |
| Mesh Material | Stainless Steel (SS304/SS316) |
| End Connections | Flanged, Screwed, Socket Weld |
| Design Standards | ASME B16.34, Manufacturers Standard |
